3 Phase Control

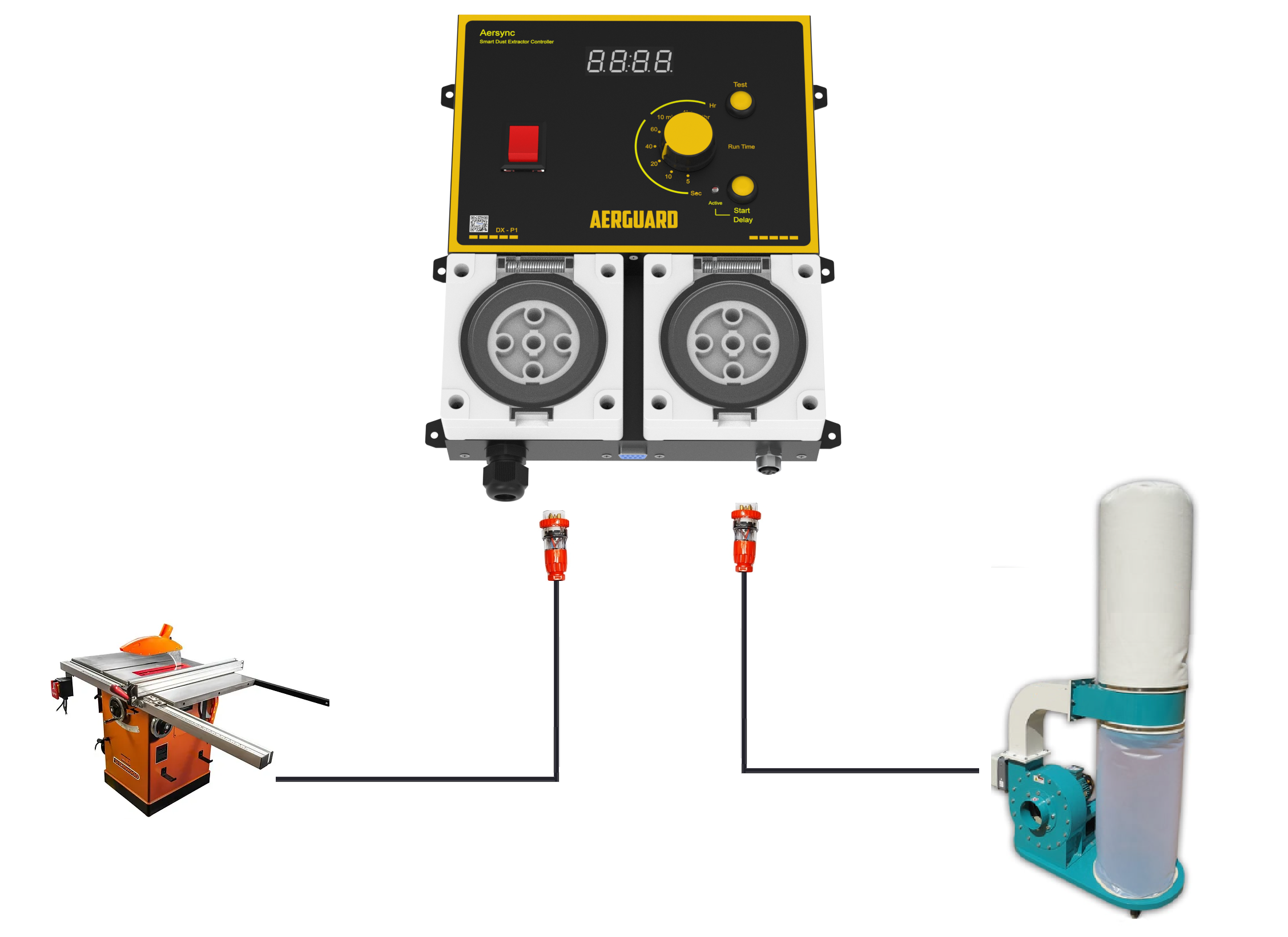

Connection Type Slave


When connected as a slave, the 3-phase controller will follow the main unit’s operation. When the main unit is on, the 3-phase controller is on. When the main unit is off, the 3-phase controller is off.

No complicated wiring—simply plug the main controller into the 3-phase controller with the data cable, turn on both units, and you’re ready to go.

Connection Type Independent Control

When configured for independent control, the 3-phase controller will turn the dust extractor on when the “On” button on the remote is pressed. Pressing the “Off” button will turn the dust extractor motor off.
